Ballast Compatible T8 LED Tube
Ballast Compatible T8 LED Tube
Specifications:
| Model No | BRO-T8-4FT-20W |
| Size | 1200mm/4ft |
| Rated Power | 20W |
| Input Voltage | AC100~277V 50/60Hz |
| Cover | Clear, Frosted |
| Color Temperature | 3000K-3500K 4000-4500K 5500-6500K |
| Luminous flux | 2200-2400lm |
| CRI | >80 |
| Materials | Aluminum&PC Cover |
| Beam Angle | 180° |
| PF value | >0.96 |
| Power supply efficiency | 90% |
| Lifespan | 50,000hrs |
| Package | 13KG 25pcs/carton |
| Standard | DLC, UL,FCC,CE,RoHS |
| Warranty | 5 years |
Features:
1. Compabitle with electronic ballast and maganetic ballast.
2.Super High Lumen,Epitar SMD2835 LED Chip with LM80. CRI>80
4.Power supply efficiency: 90%, PF value>0.96
5.The best capacitor Japan-Rubycon is adopted on power supply to ensure the lifetime 50,000 hours.
6.Aluminum base LED PCB+100% aluminum tube housing,Excellent heat sink;
Applications:
a) Hotels & schools.
b) Hospitals & shopping mall.
c) Residential lighting.
d) Factories, offices & meeting rooms.
e) Places where need energy saving and high color rendering index lighting.
Nice Design, Best Factory Price, High Quality
Specifications:
| Model No |
BL-FE-T84-18W |
| Size | 1200*26mm 4ft tube |
| Rated Power |
18W |
| Input Voltage | AC85~277V, 50~60Hz |
| LED Type | SMD |
| Color Temperature | 3000K-3500K 4000-4500K 5500-6500K |
| Luminous flux | 1800-2000lm |
| CRI | 80 |
| Materials |
Aluminum&PC Cover |
| Beam Angle | 180° |
| PF value | >0.9 |
| Power supply efficiency | 90% |
| Lifespan | 50,000hrs |
| Package | 15KG 20pcs/carton |
| Standard | CE,RoH |
Features:
1.Super High Lumen
2.CRI>80
4.Power supply efficiency: 90%
5.The best capacitor Japan-Rubycon is adopted on power supply to ensure the lifetime 50,000 hours.
6.Aluminum base LED PCB+100% aluminum tube housing,Excellent heat sink;
Applications:
a) Hotels & schools.
b) Hospitals & shopping mall.
c) Residential lighting.
d) Factories, offices & meeting rooms.
e) Places where need energy saving and high color rendering index lighting.
360° Beam Angle, High lumen, High CRI, High Efficacy
Features:
1.360° Beam angle.
2.Newest technology adopted, whole plastic design.
3.Power supply efficiency: 90%,
4.High lumen, High CRI
Specifications:
|
Model No |
BL-LF-T84-18W |
|
Size |
1200*26mm 4ft tube |
|
Rated Power |
18W |
|
Input Voltage |
AC85~265V, 50~60Hz |
|
LED Type |
SMD |
|
Color Temperature |
3000K-3500K 4000-4500K 5500-6500K |
|
Luminous flux |
1800-2000lm |
|
CRI |
80 |
|
Materials |
Aluminum&PC Cover |
|
Beam Angle |
360° |
|
PF value |
>0.9 |
|
Power supply efficiency |
90% |
|
Lifespan |
50,000hrs |
|
Package |
15KG 25pcs/carton |
|
Standard |
CE,RoHS |
360° Beam Angle, High lumen, High CRI, High Efficacy
Features:
1.360° Beam angle.
2.Newest technology adopted, whole plastic design.
3.Power supply efficiency: 90%,
4.High lumen, High CRI
Specifications:
|
Model No |
BL-LF-T82-9W |
|
Size |
600*26mm 2ft tube |
|
Rated Power |
9W |
|
Input Voltage |
AC85~265V, 50~60Hz |
|
LED Type |
SMD |
|
Color Temperature |
3000K-3500K 4000-4500K 5500-6500K |
|
Luminous flux |
800-900lm |
|
CRI |
80 |
|
Materials |
PC Cover |
|
Beam Angle |
360° |
|
PF value |
>0.9 |
|
Power supply efficiency |
90% |
|
Lifespan |
50,000hrs |
|
Package |
10KG 25pcs/carton |
|
Standard |
CE,RoHS |
High lumen, High CRI, High Efficacy
Features:
1.360° Beam angle.
2.Newest technology adopted, whole plastic design.
3.Power supply efficiency: 90%,
4.High lumen, High CRI
Specifications:
|
Model No |
BL-LF-T84-18W |
|
Size |
1200*26mm 4ft tube |
|
Rated Power |
18W |
|
Input Voltage |
AC85~265V, 50~60Hz |
|
LED Type |
SMD |
|
Color Temperature |
3000K-3500K 4000-4500K 5500-6500K |
|
Luminous flux |
1800-1900lm |
|
CRI |
80 |
|
Materials |
PC Cover |
|
Beam Angle |
360° |
|
PF value |
>0.9 |
|
Power supply efficiency |
90% |
|
Lifespan |
50,000hrs |
|
Package |
15KG 25pcs/carton |
|
Standard |
CE,RoHS |
360° Beam Angle, High lumen, High CRI, High Efficacy
Specifications:
| Model No | BL-LF-T85-22W |
| Size | 1500*26mm 5ft tube |
| Rated Power | 22W |
| Input Voltage | AC85~265V, 50~60Hz |
| LED Type | SMD |
| Color Temperature | 3000K-3500K 4000-4500K 5500-6500K |
| Luminous flux | 2200-2300lm |
| CRI | 80 |
| Materials | PC Cover |
| Beam Angle | 360° |
| PF value | >0.9 |
| Power supply efficiency | 90% |
| Lifespan | 50,000hrs |
| Package | 15KG 20pcs/carton |
| Standard | CE,RoHS |
Features:
1.360° Beam angle.
2.Newest technology adopted, whole plastic design.
3.Power supply efficiency: 90%,
4.High lumen, High CRI
Applications:
a) Hotels & schools.
b) Hospitals & shopping mall.
c) Residential lighting.
d) Factories, offices & meeting rooms.
e) Places where need energy saving and high color rendering index lighting.

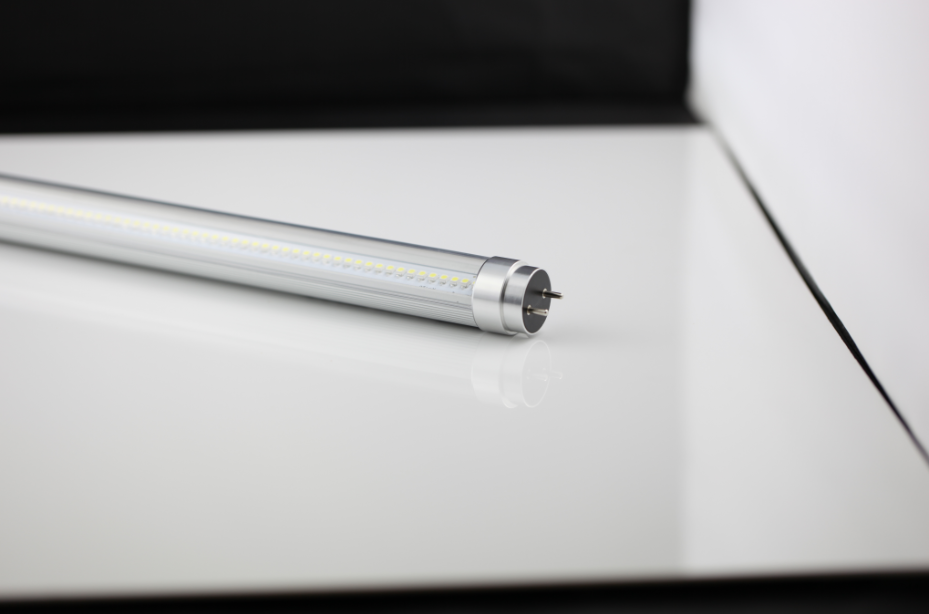

Classic T8 LED Tubes 150cm/5Ft
Nice design, Best Factary Price, High quality
Specifications:
| Model No | BL-FE-T85-22W |
| Size | 1500*26mm 5ft tube |
| Rated Power | 22W |
| Input Voltage | AC85~277V,50~60Hz |
| LED Type | SMD |
| Color Temperature | 3000K-3500K 4000-4500K 5500-6500K |
| Luminous flux | 2100-2200lm |
| CRI | 80 |
| Materials | Aluminum&PC Cover |
| Beam Angle | 180° |
| PF value | >0.9 |
| Power supply efficiency | 90% |
| Lifespan | 50,000hrs |
| Package | 10KG 20pcs/carton |
| Standard | CE,RoHS |
Features:
1.Super High Lumen
2.CRI>82
4.Power supply efficiency: 90%, PF value>0.96
5.The best capacitor Japan-Rubycon is adopted on power supply to ensure the lifetime 50,000 hours of LED Tube.
6.Aluminum base LED PCB+100% aluminum tube housing,Excellent heat sink;
Applications:
a) Hotels & schools.
b) Hospitals & shopping mall.
c) Residential lighting.
d) Factories, offices & meeting rooms.
e) Places where need energy saving and high color rendering index lighting.
Nice design, Best Factory Price, High Quality
Specifications:
| Model No | BL-FE-T84-18W |
| Size | 1200*26mm 4ft tube |
| Rated Power | 18W |
| Input Voltage | AC85~277V, 50~60Hz |
| LED Type | SMD |
| Color Temperature | 3000K-3500K 4000-4500K 5500-6500K |
| Luminous flux | 1800-2000lm |
| CRI | 80 |
| Materials | Aluminum&PC Cover |
| Beam Angle | 180° |
| PF value | >0.9 |
| Power supply efficiency | 90% |
| Lifespan | 50,000hrs |
| Package | 15KG 20pcs/carton |
| Standard | CE,RoHS |
Features:
1.Super High Lumen
2.CRI>82
4.Power supply efficiency: 90%, PF value>0.96
5.The best capacitor Japan-Rubycon is adopted on power supply to ensure the lifetime 50,000 hours of MEGE-LED Tube.
6.Aluminum base LED PCB+100% aluminum tube housing,Excellent heat sink;
Applications:
a) Hotels & schools.
b) Hospitals & shopping mall.
c) Residential lighting.
d) Factories, offices & meeting rooms.
e) Places where need energy saving and high color rendering index lighting.
Nice design, Best Factary Price, High quality
Specifications:
| Model No | BL-FE-T84-10W |
| Size | 600*26mm 2ft tube |
| Rated Power | 10W |
| Input Voltage | AC85~277V,50~60Hz |
| LED Type | SMD |
| Color Temperature | 3000K-3500K 4000-4500K 5500-6500K |
| Luminous flux | 900-1000lm |
| CRI | 80 |
| Materials | Aluminum&PC Cover |
| Beam Angle | 180° |
| PF value | >0.9 |
| Power supply efficiency | 90% |
| Lifespan | 50,000hrs |
| Package | 10KG 20pcs/carton |
| Standard | CE,RoHS |
Features:
1.Super High Lumen
2.CRI>82
4.Power supply efficiency: 90%, PF value>0.96
5.The best capacitor Japan-Rubycon is adopted on power supply to ensure the lifetime 50,000 hours of LED Tube.
6.Aluminum base LED PCB+100% aluminum tube housing,Excellent heat sink;
Applications:
a) Hotels & schools.
b) Hospitals & shopping mall.
c) Residential lighting.
d) Factories, offices & meeting rooms.
e) Places where need energy saving and high color rendering index lighting.
